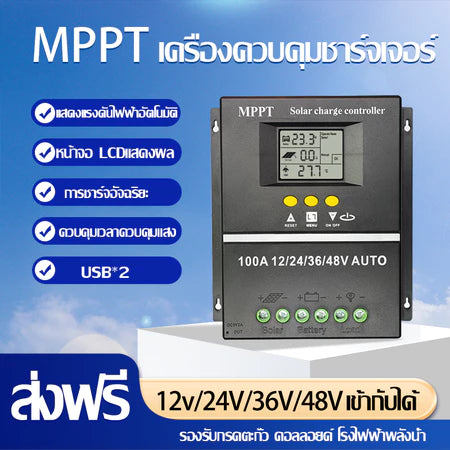

MPPT 100A:
*Can be used with 50-4800W solar panels (can be connected in series)
*Can be connected to 12-48V batteries (up to 58V)
MPPT 60A:
*Can be used with 50-2880W solar panels (can be connected in series)
*Can be connected to 12-48V batteries (up to 58V)
MPPT 30A:
*Can be used with 50-1440W solar panels (can be connected in series)
*Can be connected to 12-48V batteries (up to 58V)
MPPT100A:
12V battery, maximum 1200W solar panel
24V battery, maximum 2400W solar panel
36V battery, maximum 3600W solar panel
48V battery, maximum 4800W solar panel
MPPT60A:
12V battery, maximum 720W solar panel
24V battery, maximum 1440W solar panel
36V battery, maximum 2160W solar panel
48V battery, maximum 2880W solar panel
MPPT30A:
12V battery, maximum 360W solar panel
24V battery, maximum 720W solar panel
36V battery, maximum 1080W solar panel
48V battery, maximum 1440W solar panel



Features 【Black】
✦Charging type: MPPT
✦Maximum current: 30/60A/100A
✦System voltage: Auto 12V / 24V / 36V / 48V
✦Automatic voltage identification:
12V system uses 15V-23V solar panels
24V system uses 30V-46V solar panels
36V system uses 45V-66V solar panels
48V system uses 60V-90V solar panels
✦Battery type: Lead-acid battery (FLD\ GEL\ SLD) or Lithium battery or User battery
✦Maximum PV power: 720W / 12V system; 1440W / 24V system; 2160W / 36V system; 2880W / 48V system
✦Electromagnetic compatibility: According to EN61000, EN55022, EN55024
✦Automatic temperature compensation: -3mV / 2V / oC
✦Ambient temperature: -40℃~+75℃
✦Maximum efficiency: >99%
✦Waterproof rating: IP21
✦Dimensions (mm): 180*190mm
✦Net weight (kg): 1.1
