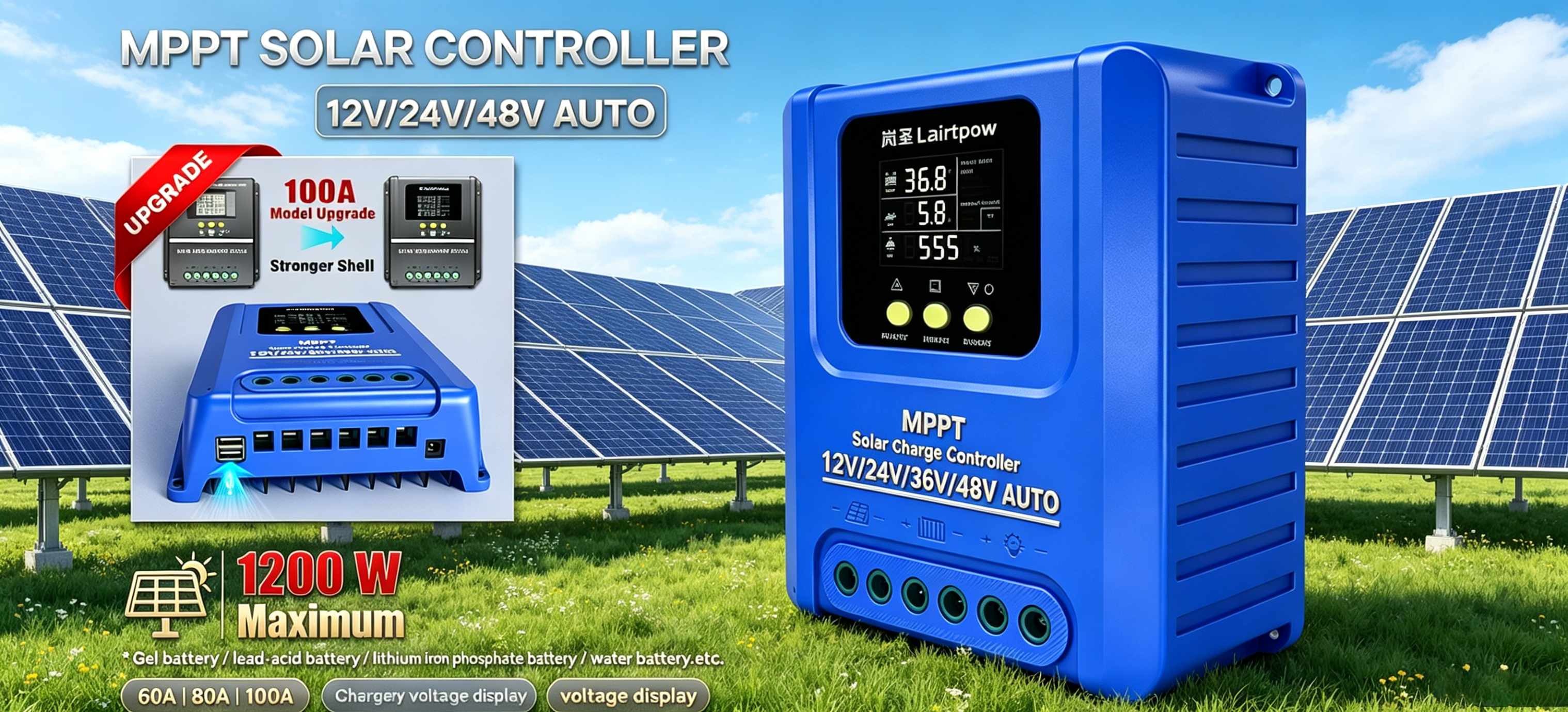

MPPT 100A:

*Can be used with 50-4800W solar panels (can be connected in series)

*Can be connected to 12-48V batteries (up to 58V)

MPPT 60A:

*Can be used with 50-2880W solar panels (can be connected in series)

*Can be connected to 12-48V batteries (up to 58V)

MPPT 30A:

*Can be used with 50-1440W solar panels (can be connected in series)

*Can be connected to 12-48V batteries (up to 58V)

MPPT100A:

12V battery, maximum 1200W solar panel

24V battery, maximum 2400W solar panel

36V battery, maximum 3600W solar panel

48V battery, maximum 4800W solar panel

MPPT60A:

12V battery, maximum 720W solar panel

24V battery, maximum 1440W solar panel

36V battery, maximum 2160W solar panel

48V battery, maximum 2880W solar panel

MPPT30A:

12V battery, maximum 360W solar panel

24V battery, maximum 720W solar panel

36V battery, maximum 1080W solar panel

48V battery, maximum 1440W solar panel

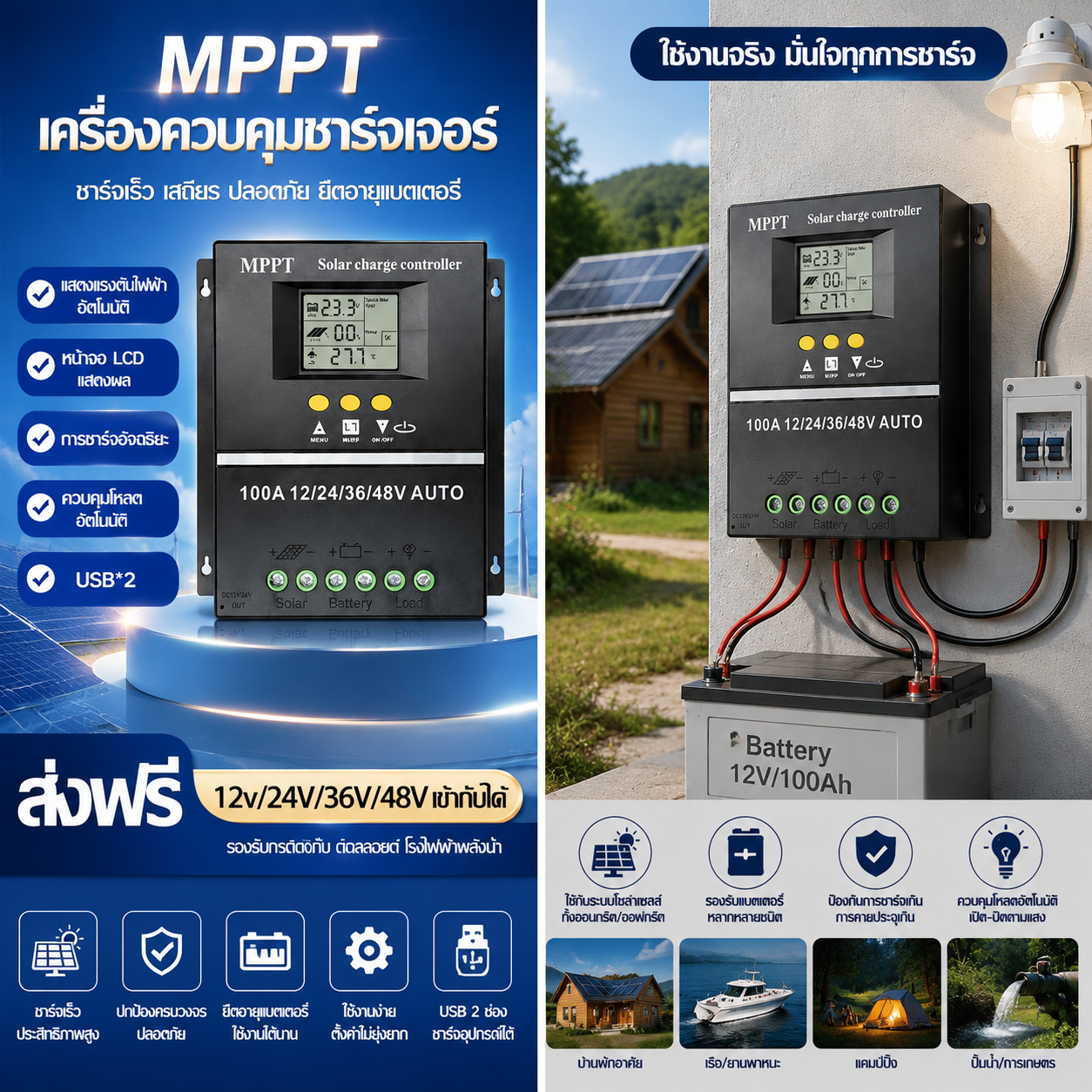

Features 【Black】

✦Charging type: MPPT

✦Maximum current: 30/60A/100A

✦System voltage: Auto 12V / 24V / 36V / 48V

✦Automatic voltage identification:

12V system uses 15V-23V solar panels

24V system uses 30V-46V solar panels

36V system uses 45V-66V solar panels

48V system uses 60V-90V solar panels

✦Battery type: Lead-acid battery (FLD\ GEL\ SLD) or Lithium battery or User battery

✦Maximum PV power: 720W / 12V system; 1440W / 24V system; 2160W / 36V system; 2880W / 48V system

✦Electromagnetic compatibility: According to EN61000, EN55022, EN55024

✦Automatic temperature compensation: -3mV / 2V / oC

✦Ambient temperature: -40℃~+75℃

✦Maximum efficiency: ＞99%

✦Waterproof rating: IP21

✦Dimensions (mm): 180*190mm

✦Net weight (kg): 1.1

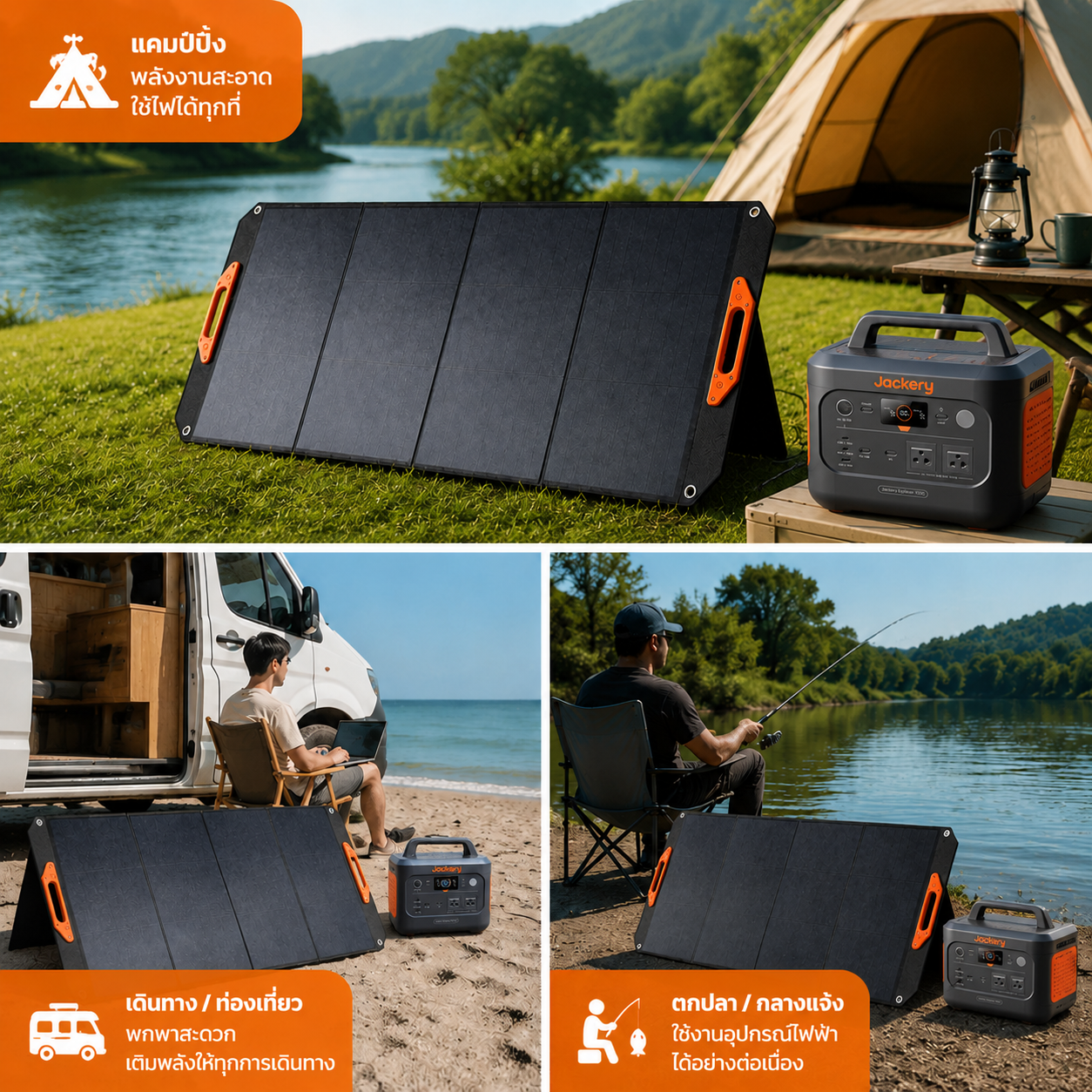

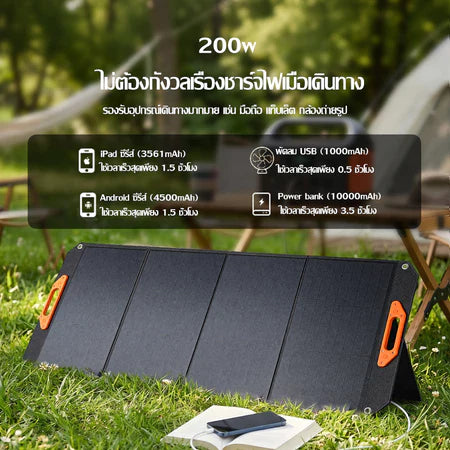

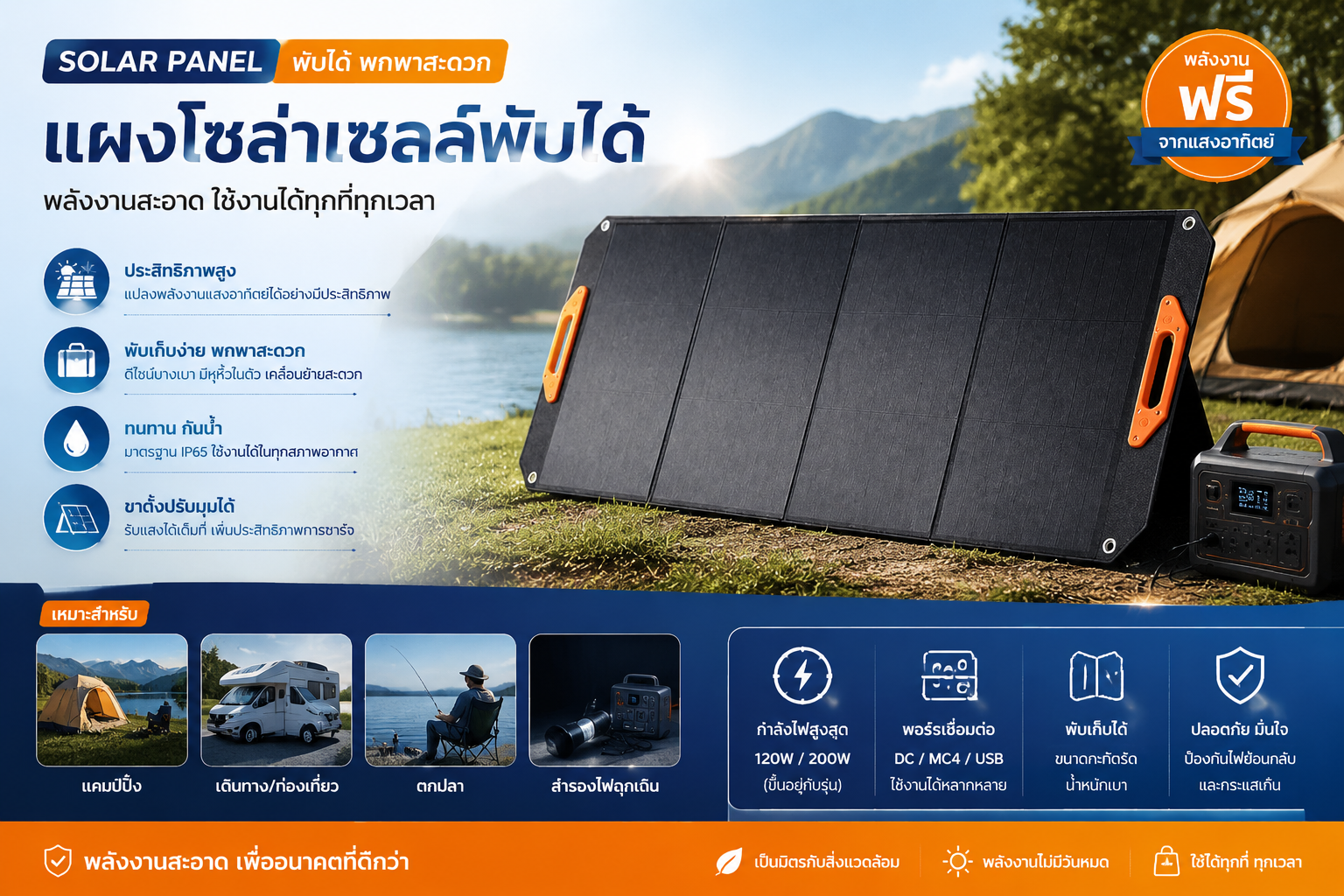

Brand: LAIRTPOW



Model: ZXY-T200W



Warranty: 24 months



Net weight: 6.7 kg



Gross weight: 6.9 kg



Material: Monocrystalline silicon



Conversion efficiency: 23%



Output power: Max 200W



MC4: 18V11A



Folded size: 573*586*80/mm



Unfolded size: 573*2133*20/mm



Applicable models: Bluetti/E-F/Jackery/Uapow/DJI/Segway, etc.



Adapter cable: The solar panel has an MC4 output, and an adapter cable for some power stations needs to be purchased separately.



Notes:



1*The actual charging effect depends on weather conditions and placement angle.



2*Please ensure there are no shadows on the surface of the solar panel during use.

3*The solar panel is splash-proof but cannot be used during prolonged rain.
